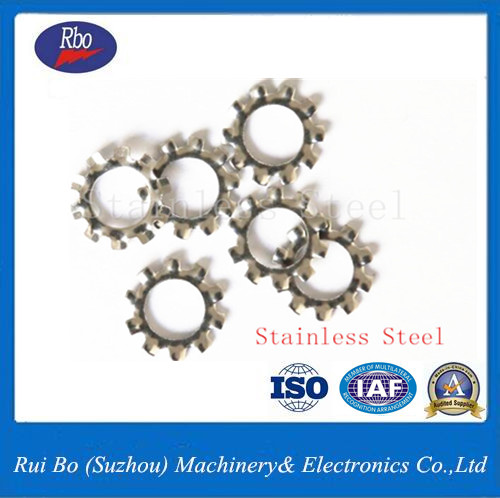

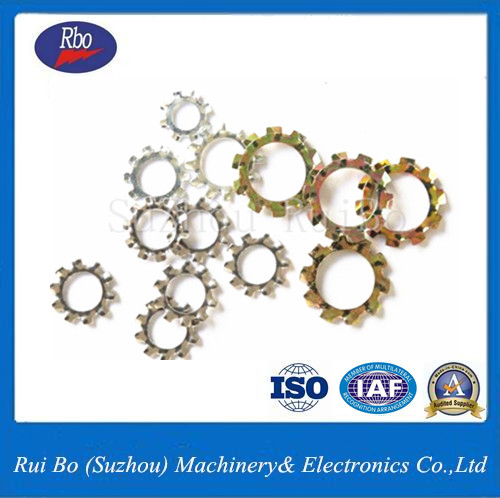

DIN6797A External Teeth Washer
location:Home>>DIN6797A External Teeth WasherProducts
 |  |
 |  |
| DIN6797A External Teeth Washer | |||||
| Dimension | d H13 | dc h14 | H min | h | Teeth |
| 1.6 | 1.7 | 3.6 | 2h | 0.3 | 6 |
| 1.8 | 2 | 4 | 0.3 | ||
| 2 | 2.2 | 4.5 | 0.3 | ||
| 2.2 | 2.4 | 5 | 0.4 | ||
| 2.5 | 2.7 | 5.5 | 0.4 | ||
| 3 | 3.2 | 6 | 0.4 | ||
| 3.5 | 3.7 | 7 | 0.5 | ||
| 4 | 4.3 | 8 | 0.5 | ||
| 5 | 5.3 | 10 | 0.6 | 8 | |
| 6 | 6.4 | 11 | 0.7 | ||
| 7 | 7.4 | 12.5 | 0.8 | ||
| 8 | 8.4 | 15 | 0.8 | ||
| 10 | 10.5 | 18 | 0.9 | 9 | |
| 12 | 13 | 20.5 | 1 | 10 | |
| 14 | 15 | 24 | 1 | ||
| 16 | 17 | 26 | 1.2 | 12 | |
| 18 | 19 | 30 | 1.4 | ||
| 20 | 21 | 33 | 1.4 | ||
| 22 | 23 | 36 | 1.5 | 14 | |
| 24 | 25 | 38 | 1.5 | ||
| 27 | 28 | 44 | 1.6 | ||
| 30 | 31 | 48 | 1.6 | ||
| Materials | Our Advice For You Below : |
| Spring Steel： 65Mn | ≤200°C，Under Normal Condition |
| Stainless Steel：SS304、SS316 | ≤300°C，Under Corrosive Condition |
| Customized As Per Clients' Requirements |

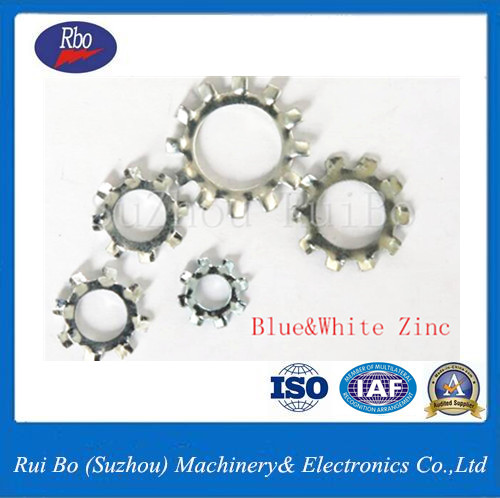

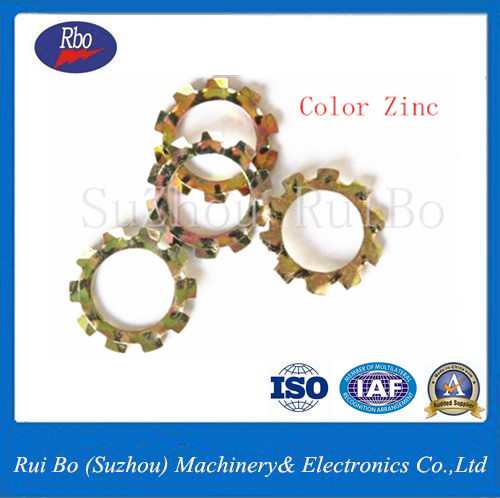

Plated Zinc , Dacromet , Geomet , Black Finishing
